[New Video Surveillance Range 2026] – How to find RTSP streams

Valid for the following ranges:

- Essential GGM IPI and GGM NVI series

- Gamme Standard GGM IPS et GGM NVS

- Gamme Advanced GGM IPA et GGM NVA

- GGM IPP and GGM NVP Pro Series

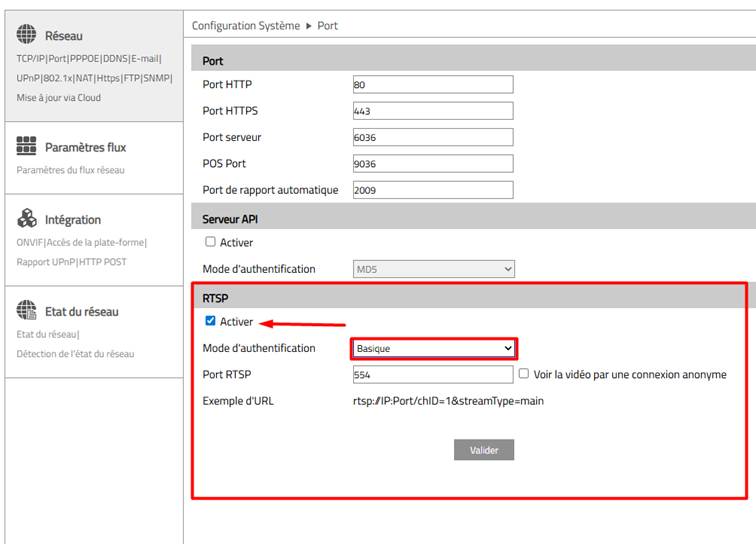

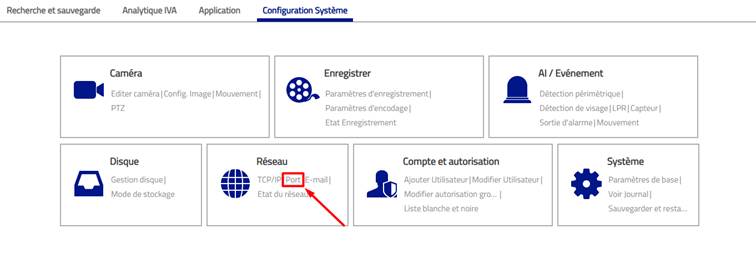

Network  Menu /Port:

Enable RTSP protocol:

Ability to change the port number (554 by default) and authentication mode as needed.

Check the box: Watch the video through an anonymous connection if you don't want to authenticate when opening the video stream.

RTSP stream address of a recorder:

rtsp://IP address:554/chID=1&streamType=main

or

rtsp://IP address:554/chID=1&streamType=sub

With the following indicator:

ChID=1 corresponds to channel 1

Main is the main stream

Example:

rtsp://192.168.1.15:554/chID=1&streamType=main

This corresponds to the main stream of camera 1

rtsp://192.168.1.15:554/chID=2&streamType=sub

This corresponds to the secondary stream of camera 2

-------------------------------------------------------------------

RTSP Stream Address of a Camera:

rtsp://IP adresse:554/profile1 (flux principal)

or

rtsp://IP address:554/profile2 (secondary stream)

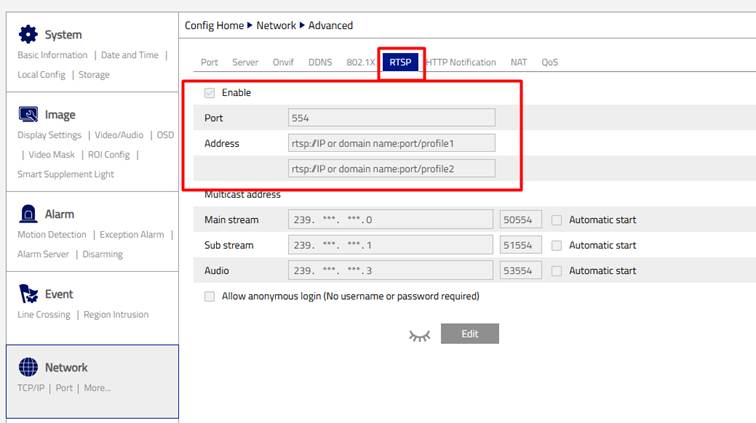

Check in the camera that the protocol is active:

Network / Port menu:

* Valid for the references below:

- GGM NVA321604MR

- GGM NVA320002MR

- GGM NVA320004MR

- GGM NVA160002R

- GGM NVA161602R

- GGM NVP2560016MR

- GGM NVP1280016MR

- GGM NVP640016MR

- GGM NVS160001D

- GGM NVS080801D

- GGM NVS040401D

- GGM NVI080801D

- GGM NVI040401D

- GGM IPAD4F2IR

- GGM IPAD6F2IR

- GGM IPAD8F2IR

- GGM IPAD4VM2IR

- GGM IPAD6VM2IR

- GGM IPAD8VM2IR

- GGM IPAT4F2IR

- GMM IPAT6F2IR

- GGM IPAT8F2IR

- GMM IPAT4VM2IR

- GMM IPAT6VM2IR

- GGM IPAT8VM2IR

- GGM IPAB4F2IR

- GGM IPAB4VM2IR

- GMM IPAB6F2IR

- GGM IPAB8F2IR

- GGM IPAB4VM5IR

- GMM IPAB6VM2IR

- GMM IPAB8VM2IR

- GGM IPAS5432IR300

- GGM IPPTT5AAA

- GGM IPPTT5ABB

- GGM IPPF121IR

- GMM IPPA4F2IR

- GGM IPPBP8F2DL

- GGM IPPTP8F2DL

- GGM IPPBT5AAA

- RCD IPPBT5ABB

- GGM IPPBL4VM2IR

- GGM IPPBL4VM8IR

- GGM IPPBT4BBC

- RCD IPPBT4BDD

- RCD IPPBT4BDE

- GGM IPPS7837IR300

- GGM IPSD4F2DL

- GGM IPSD6F2DL

- GGM IPSD8F2DL

- GGM IPSD4VM2IR

- GMM IPSD8VM2IR

- GGM IPST4F2DL

- GGM IPST6F2DL

- GGM IPST8F2DL

- GGM IPST4VM2DL

- GGM IPST6VM2DL

- GGM IPST8VM2DL

- GGM IPSC6F2IR

- GGM IPSB4F2DL

- GGM IPSB6F2DL

- GGM IPSB8F2DL

- GGM IPSB4VM2DL

- GGM IPSB6VM2DL

- GGM IPSB8VM2DL

- GGM IPSP143IR30

- GGM IPSS344DL50

- GGM IPSS4225IR300

- GGM IPSS4425IR160

- GGM IPIT8F2DL

- GGM IPIT2F2DL

- GGM IPIT4F2DL

- GGM IPIT4VM2DL

- GGM IPIB8F2DL

- GGM IPIB2F2DL

- GGM IPIB4F2DL

- GGM IPIB4VM2DL
