Valable pour les gammes suivantes :
- Gamme Essential GGM IPI et GGM NVI
- Gamme Standard GGM IPS et GGM NVS
- Gamme Advanced GGM IPA et GGM NVA
- Gamme Pro GGM IPP et GGM NVP
Cet article s'applique uniquement pour certaines références *

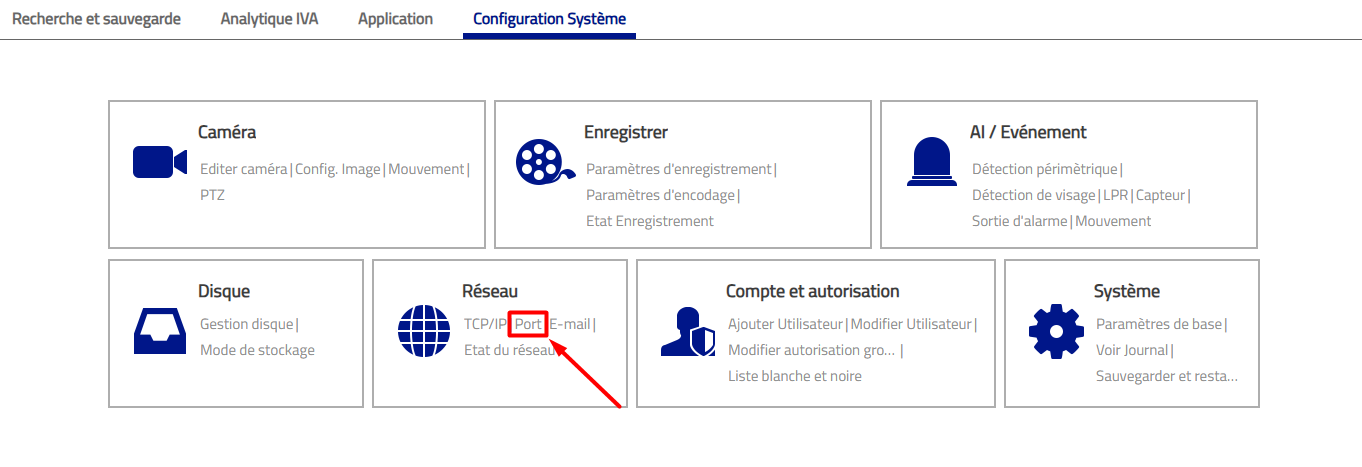

Menu Réseau /Port :

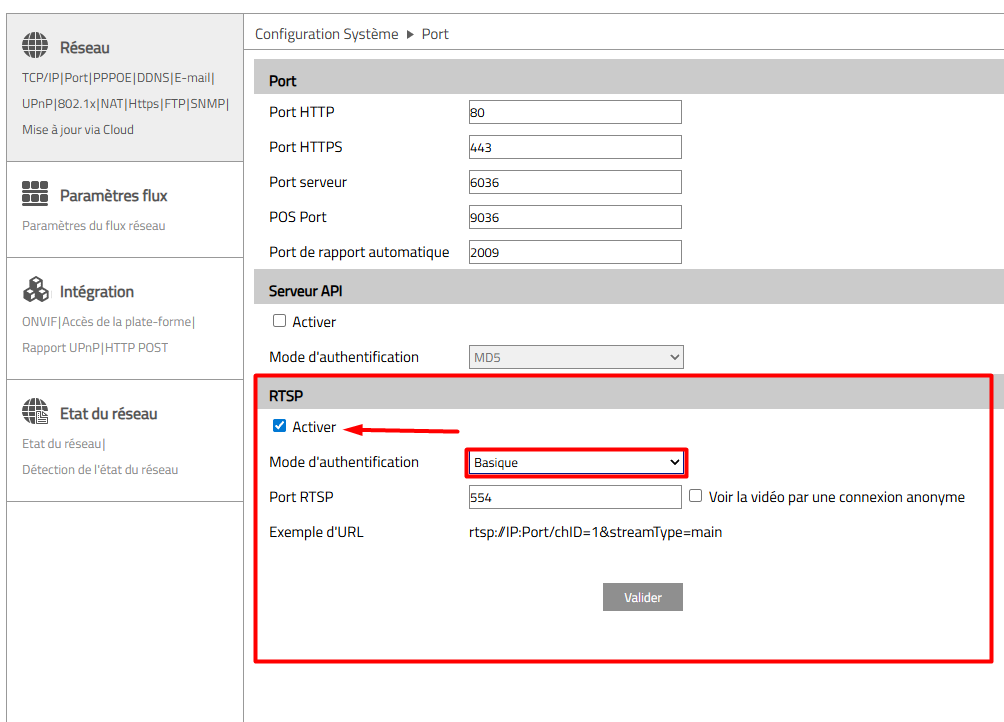

Activer le protocole RTSP :

Possibilité de modifier le numéro de port (554 par défaut) et le mode d'authentification selon voter besoin.
Cocher la case : Voir la vidéo par une connexion anonyme si vous ne souhaitez pas vous authentifier lors de l'ouverture du flux vidéo.
Adresse du flux RTSP d'un enregistreur :
rtsp://IP adresse:554/chID=1&streamType=main
ou
rtsp://IP adresse:554/chID=1&streamType=sub
Avec comme indicateur :
ChID=1 correspond au canal 1
Main correspond au flux principal
Exemple :
rtsp://192.168.1.15:554/chID=1&streamType=main
Cela correspond au flux principal de la caméra 1
rtsp://192.168.1.15:554/chID=2&streamType=sub
Cela correspond au flux secondaire de la caméra 2
-------------------------------------------------------------------
Adresse du flux RTSP d'une caméra :
rtsp://IP adresse:554/profile1 (flux principal)
ou
rtsp://IP adresse:554/profile2 (flux secondaire)

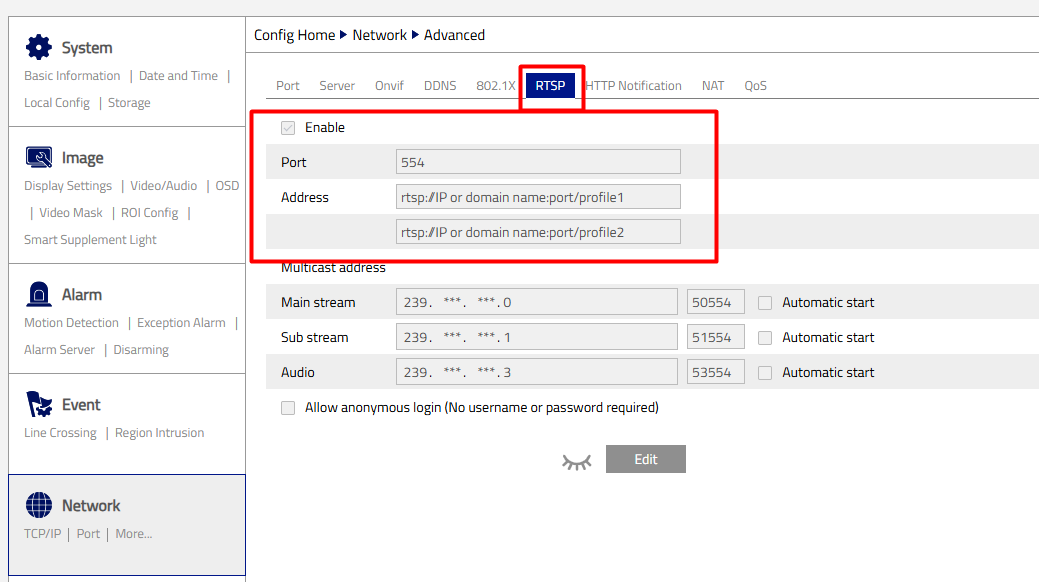

Bien vérifier dans la caméra que le protocole est actif :
Menu Réseau / Port :

* Valables pour les références ci-dessous :
- GGM NVA321604MR
- GGM NVA320002MR
- GGM NVA320004MR
- GGM NVA160002R
- GGM NVA161602R
- GGM NVP2560016MR
- GGM NVP1280016MR
- GGM NVP640016MR
- GGM NVS160001D
- GGM NVS080801D
- GGM NVS040401D
- GGM NVI080801D
- GGM NVI040401D
- GGM IPAD4F2IR
- GGM IPAD6F2IR
- GGM IPAD8F2IR
- GGM IPAD4VM2IR
- GGM IPAD6VM2IR
- GGM IPAD8VM2IR
- GGM IPAT4F2IR
- GGM IPAT6F2IR
- GGM IPAT8F2IR
- GGM IPAT4VM2IR
- GGM IPAT6VM2IR
- GGM IPAT8VM2IR
- GGM IPAB4F2IR
- GGM IPAB4VM2IR
- GGM IPAB6F2IR
- GGM IPAB8F2IR
- GGM IPAB4VM5IR
- GGM IPAB6VM2IR
- GGM IPAB8VM2IR
- GGM IPAS5432IR300
- GGM IPPTT5AAA
- GGM IPPTT5ABB
- GGM IPPF121IR
- GGM IPPA4F2IR
- GGM IPPBP8F2DL
- GGM IPPTP8F2DL
- GGM IPPBT5AAA
- GGM IPPBT5ABB
- GGM IPPBL4VM2IR
- GGM IPPBL4VM8IR
- GGM IPPBT4BBC
- GGM IPPBT4BDD
- GGM IPPBT4BDE
- GGM IPPS7837IR300
- GGM IPSD4F2DL
- GGM IPSD6F2DL
- GGM IPSD8F2DL
- GGM IPSD4VM2IR
- GGM IPSD8VM2IR
- GGM IPST4F2DL
- GGM IPST6F2DL
- GGM IPST8F2DL
- GGM IPST4VM2DL
- GGM IPST6VM2DL
- GGM IPST8VM2DL
- GGM IPSC6F2IR
- GGM IPSB4F2DL
- GGM IPSB6F2DL
- GGM IPSB8F2DL
- GGM IPSB4VM2DL
- GGM IPSB6VM2DL
- GGM IPSB8VM2DL
- GGM IPSP143IR30
- GGM IPSS344DL50
- GGM IPSS4225IR300
- GGM IPSS4425IR160
- GGM IPIT8F2DL
- GGM IPIT2F2DL
- GGM IPIT4F2DL
- GGM IPIT4VM2DL
- GGM IPIB8F2DL
- GGM IPIB2F2DL
- GGM IPIB4F2DL
- GGM IPIB4VM2DL
