Valid for the following ranges:
- Essential GGM IPI and GGM NVI series
- Gamme Standard GGM IPS et GGM NVS
- Gamme Advanced GGM IPA et GGM NVA
- GGM IPP and GGM NVP Pro Series
This article applies only to certain references *
The AI functions differ from camera to camera depending on the range.
On the Essential range, the feature only supports people detection.
On the standard range:

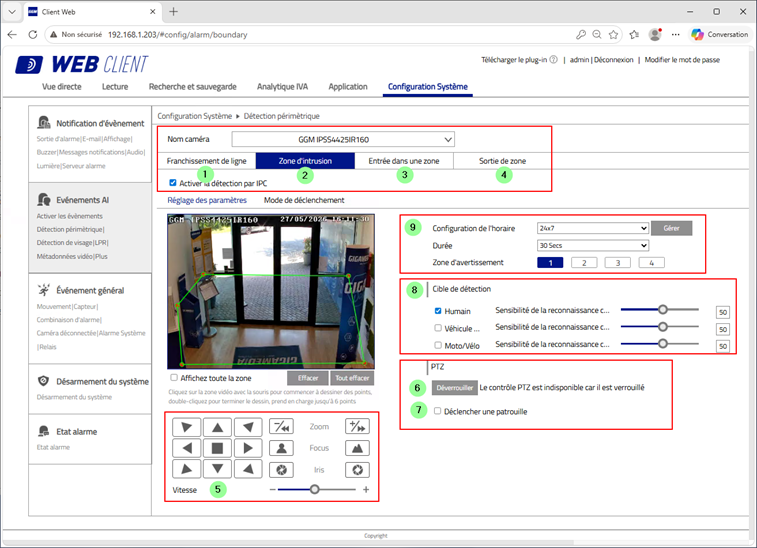

Here is the description of each numbered point in the camera's Perimeter Detection Interface (IVA).
- Line crossing A detection mode that triggers when you pass over the line drawn.
- Intrusion Zone A detection mode that triggers an alarm when a person/vehicle enters a defined area (polygon) in the image.
- Zone Entry Generates an event when a target enters the defined zone.
- Exit Zone Generates an event when a target leaves a defined zone.
- PTZ / Speed Controls.
Controls to control a PTZ camera:
- Moving (up, down, left, right)
- Zoom
- Focus
- iris
- Motion speed adjustment.
- Unlock PTZ.
The ability to unlock the PTZ control when it is blocked by another user or by an automatic mode.
- Trigger Tracking Patrol :
Enable an automatic tracking PTZ patrol (the camera moves to track the target).
- Detection Target
Filter objects detected with AI:
- Human
- Vehicle
- Motorcycle / Bike
Each type has a sensitivity setting to fine-tune the detection.
- Schedule Configuration
Defines when detection is active:
- planning (ex : 24x7)
- trigger time (e.g. 30 s)
- warning zone to create multiple detection zones.
* Valid for the references below:
- GGM NVA321604MR
- GGM NVA320002MR
- GGM NVA320004MR
- GGM NVA160002R
- GGM NVA161602R
- GGM NVP2560016MR
- GGM NVP1280016MR
- GGM NVP640016MR
- GGM NVS160001D
- GGM NVS080801D
- GGM NVS040401D
- GGM NVI080801D
- GGM NVI040401D
- GGM IPAD4F2IR
- GGM IPAD6F2IR
- GGM IPAD8F2IR
- GGM IPAD4VM2IR
- GGM IPAD6VM2IR
- GGM IPAD8VM2IR
- GGM IPAT4F2IR
- GMM IPAT6F2IR
- GGM IPAT8F2IR
- GMM IPAT4VM2IR
- GMM IPAT6VM2IR
- GGM IPAT8VM2IR
- GGM IPAB4F2IR
- GGM IPAB4VM2IR
- GMM IPAB6F2IR
- GGM IPAB8F2IR
- GGM IPAB4VM5IR
- GMM IPAB6VM2IR
- GMM IPAB8VM2IR
- GGM IPAS5432IR300
- GGM IPPTT5AAA
- GGM IPPTT5ABB
- GGM IPPF121IR
- GMM IPPA4F2IR
- GGM IPPBP8F2DL
- GGM IPPTP8F2DL
- GGM IPPBT5AAA
- RCD IPPBT5ABB
- GGM IPPBL4VM2IR
- GGM IPPBL4VM8IR
- GGM IPPBT4BBC
- RCD IPPBT4BDD
- RCD IPPBT4BDE
- GGM IPPS7837IR300
- GGM IPSD4F2DL
- GGM IPSD6F2DL
- GGM IPSD8F2DL
- GGM IPSD4VM2IR
- GMM IPSD8VM2IR
- GGM IPST4F2DL
- GGM IPST6F2DL
- GGM IPST8F2DL
- GGM IPST4VM2DL
- GGM IPST6VM2DL
- GGM IPST8VM2DL
- GGM IPSC6F2IR
- GGM IPSB4F2DL
- GGM IPSB6F2DL
- GGM IPSB8F2DL
- GGM IPSB4VM2DL
- GGM IPSB6VM2DL
- GGM IPSB8VM2DL
- GGM IPSP143IR30
- GGM IPSS344DL50
- GGM IPSS4225IR300
- GGM IPSS4425IR160
- GGM IPIT8F2DL
- GGM IPIT2F2DL
- GGM IPIT4F2DL
- GGM IPIT4VM2DL
- GGM IPIB8F2DL
- GGM IPIB2F2DL
- GGM IPIB4F2DL
- GGM IPIB4VM2DL
