GGM KITIP24xx-48xx - Improve Motion Detection for your cameras

Modified on Fri, 5 Dec at 9:13 AM

Valid for those references :

GGM KITIP24C5MP
GGM KITIP48C5MP
GGM NVRL0104
GGM NVRL0104P
GGM NVRL0108P
GGM NVR0208P
GGM NVR0216P
GGM NVR02168P
GGM NVR8
GGM NVR16
GGM NVR32
GGM NVRE0104P
GGM NVRE0108P

Caution : this method is not recomended for outoor cameras

For any configuration, you need to connect an monitor (hdmi or vga) directly on the back of your recorder.

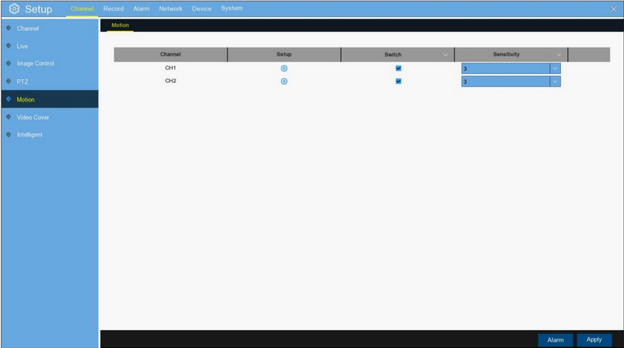

First, Enable motion dection for each camera.

setup/ Channel / motion than enable

you have the possibility to adjust and accurate the motion detectoin by using 2 parameters : Sensitivity and areas (according your environment and distance between camera and your trigger)

sensitivity: support 1 to 8 levels (8 is the highest level)

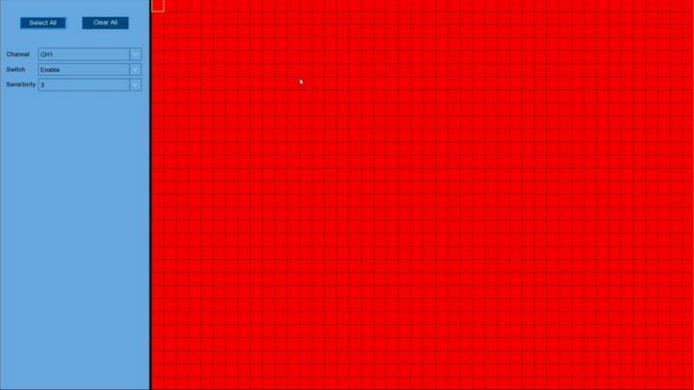

Area : set the trigger zone (alarm / motion)

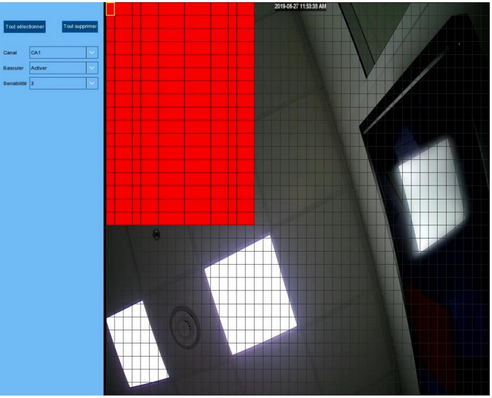

Enable or disable some areas of your camera by choosing trigger zone

Red areas are active areas (Motion detection enable)

left click to SAVE
