Setting up a UNIVIEW KB-1100 Joystick with a UNIVIEW Recorder or Camera

Prerequisites: The recorder must be connected via RJ45 on the same network as your UNIVIEW recorder.

By default, the joystick password is: 123456

1. Configure the IP address of the KB-1100 Joystick:

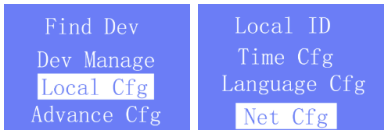

• Accesses the Cfg > Net Cfg Local Menu  on the keyboard.

• Make sure the IP address of the joystick is in the same IP address range as the NVR or PTZ camera.

Example : If the NVR is 192.168.1.100, set the joystick to 192.168.1.110.

2. Add the NVR or camera into the joystick

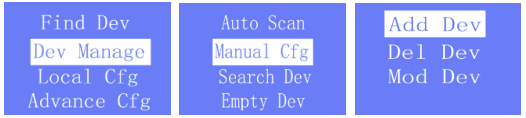

• Go to Dev Manage > Manual Cfg > Add Dev.

• Fill:
  • ID : Unique identifier (e.g. 001)
  • Name : Free (e.g. NVR-PTZ)
  • Device Type : NVR or Camera
  • Connection Type : Network
  • IP address : IP of the NVR or camera
  • Port : Default 60000 for Uniview
• Press Enter, then ESC to save.

3. Access PTZ Control

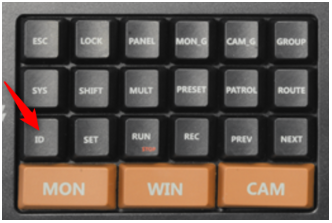

• Tap Find Dev > Dev ID, enter the NVR or camera ID.
• Press Enter to access the control.

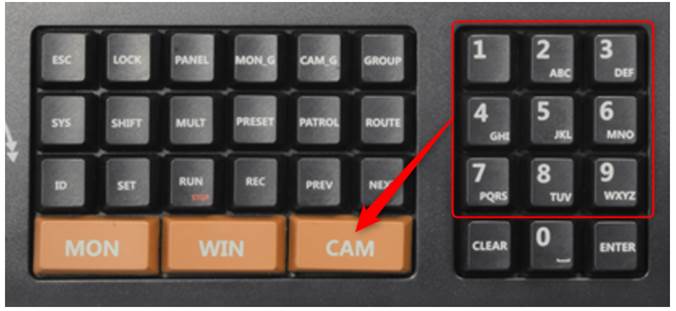

• Select the PTZ camera channel with Num Cam + CAM.

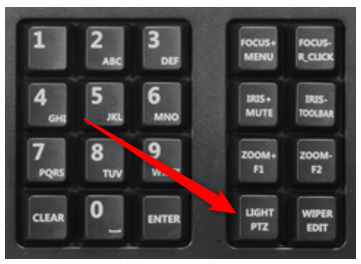

• Press the Light PTZ key  to activate PTZ mode and then Enter

• Use the joystick to orient the camera.

Advanced PTZ features

• Preset: Preset position
  • Position the camera, then press SET
  • Type in a number + PRESET to save
• Patrol: Preset Chain
  • Type in the ID+ PATROL (must be configured in the NVR)
• Road: Personalized trajectory
  • Type in the ID + ROUTE (must be configured in the NVR)
